Wireless audio solutions

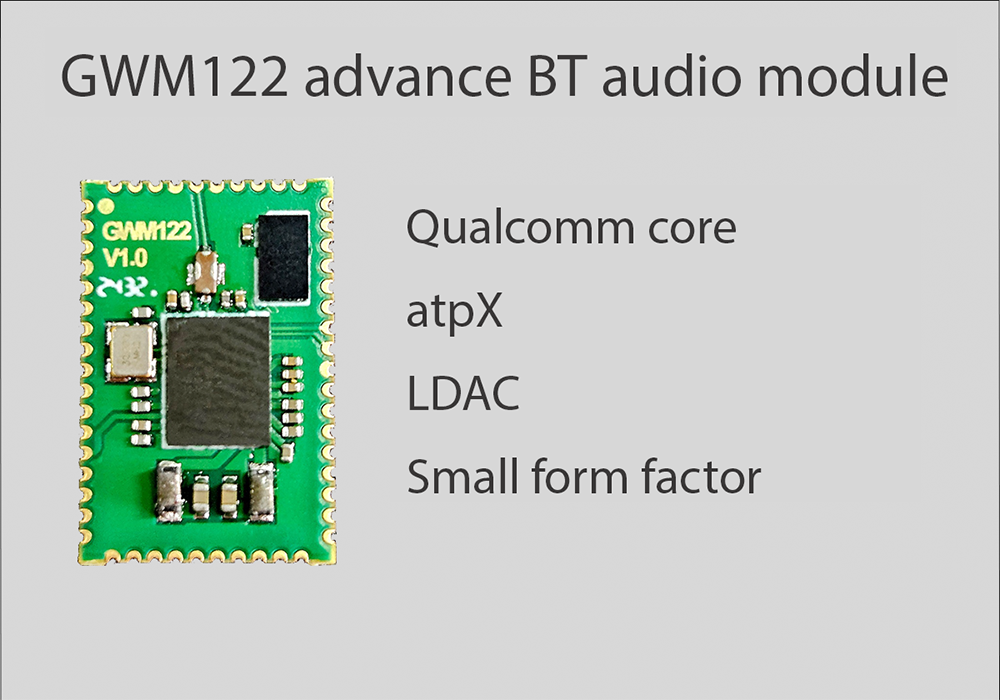

GWM122
Advance Bluetooth audio module
Cored with QCC30/51 series
On board crystal
On 64Mb SPI Flash
On board RF filter
Tx Power: 10dBm
Rx sensitivity : -96.5dBm
Audio: 4 analog input, 2 channel analog output
25 digital I/O
Operation voltage: 2.8-4.6V
Dimension: 4.93x3.936x0.57mm
firmware to be customised

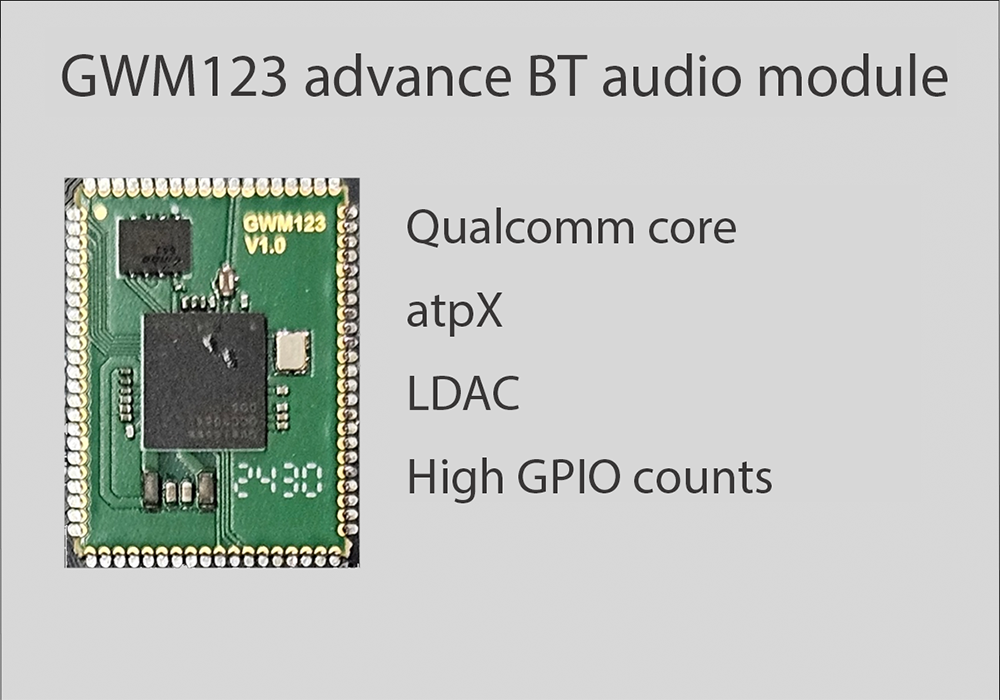

GWB123
Advance Bluetooth audio module
Cored with QCC3083 series
On board crystal
On 64Mb SPI Flash
On board RF filter
On board PMU
Tx Power: 10dBm
Rx sensitivity : -96.5dBm
Digital and analog mic input
24-bit stereo audio interface
48 digital I/O
Operation voltage: 2.8-4.6V
Dimension: 6.7x7.4x1mm
firmware to be customised

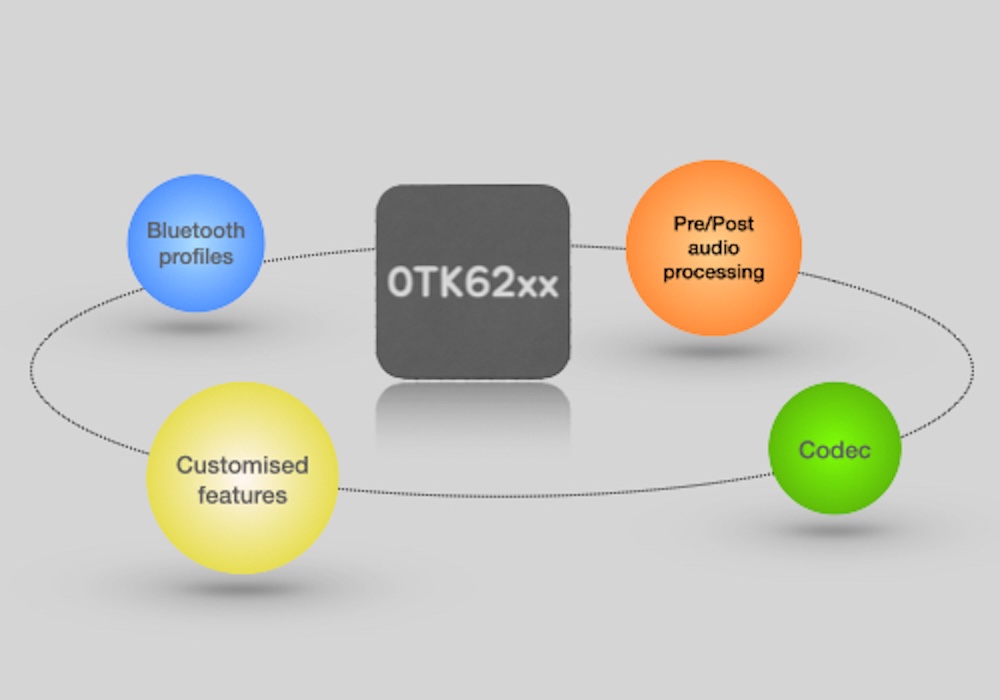

Optek wireless audio
Comprehensive Bluetooth audio chip
OTK62 series is a single chip solution for BT audio, which combines with Bluetooth, audio DSP, high speeds memory (Flash and RAM) on a single chip, which provides a cost effective solution for high end audio applications.
Firmware is subject to build base on application, please contact us for the details

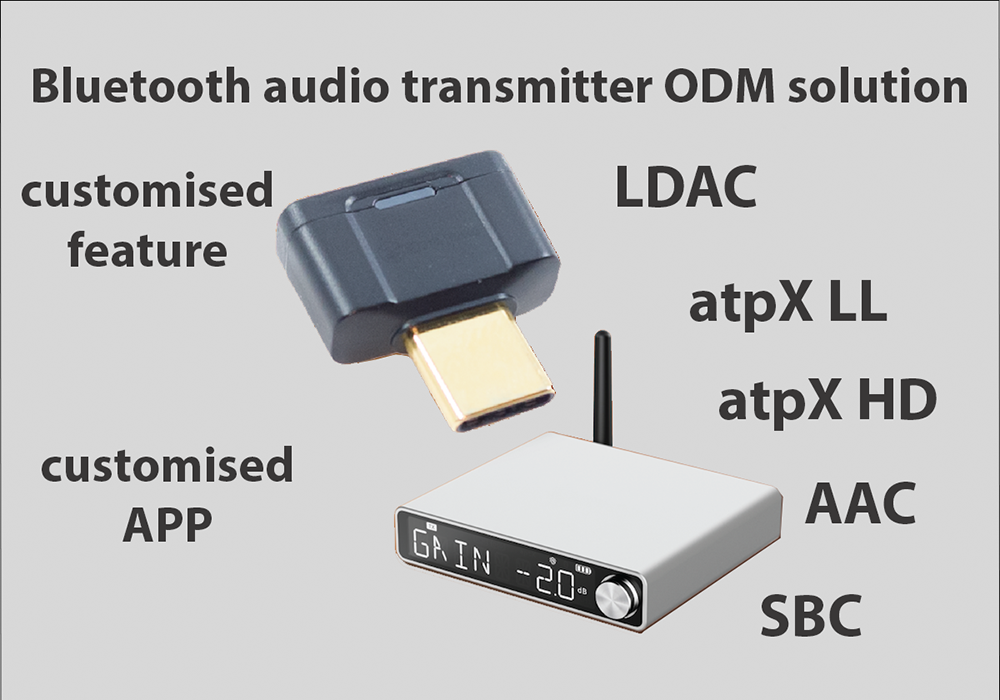

BT audio transceiver
ODM solution for BT audio transceiver
Base on Qualcomm (CSR) core, we provide ODM services for Bluetooth audio transceiver, which supports high quality audio transmisstion over Bluetooth connection.
More Info
